Gallery

In addition to the command line tools, the qtpy-datalogger package includes these GUI apps.

Scanner

qtpy-datalogger run scanner

Scan for sensor nodes by group. Select a sensor node to send it messages.

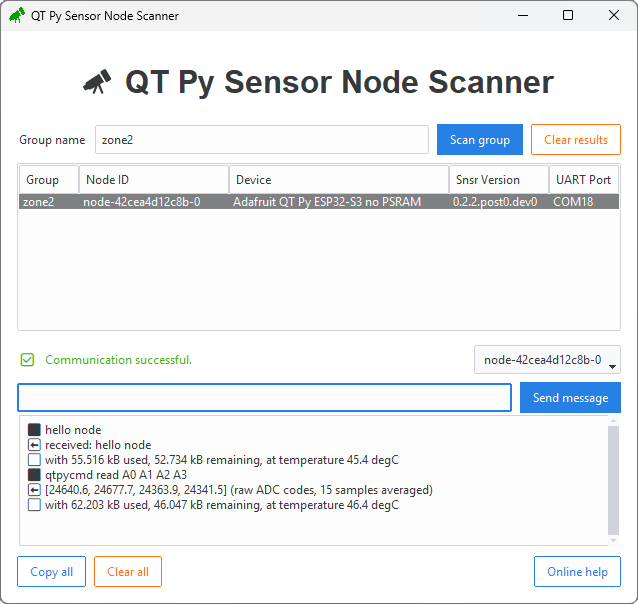

Screenshot of the scanner app

Data Viewer

qtpy-datalogger run data-viewer

Open a CSV file for time series data.

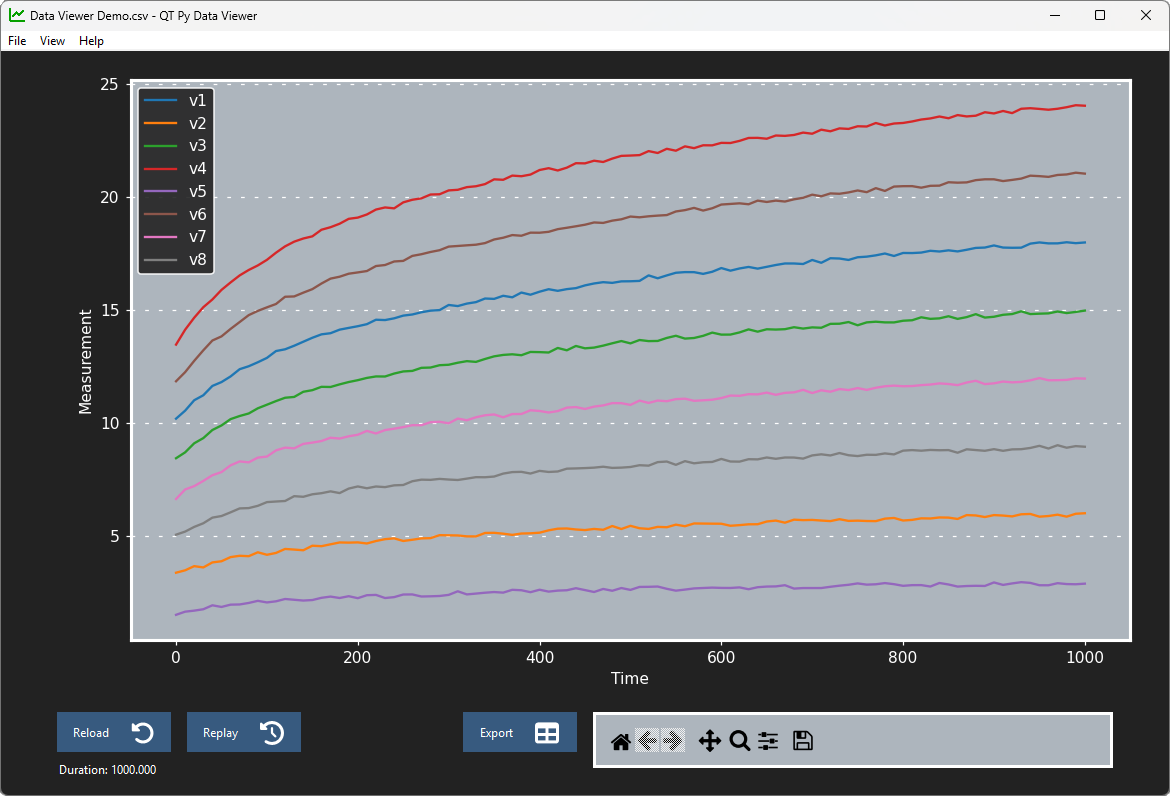

Screenshot of the data viewer app

CSV format

  • Series data are in columns
  • Series names are in the first row
  • The time axis is in the first column
    • ISO timestamps and floating point values both accepted
datalog.csv
Time,Sensor 1,Sensor 2
0.0,1.284,2.713
0.22,1.302,5.536
...

Demo apps

The GitHub repo has more example GUI apps that you can copy and run. Go to the Customize page if you want to try them.
